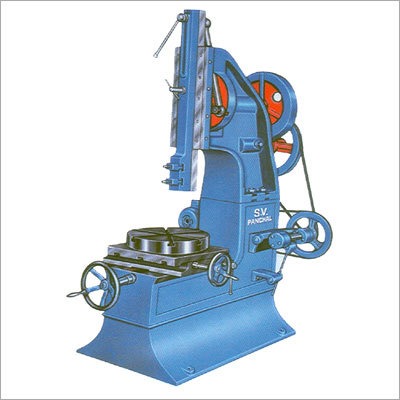

Vertical Slotting Machine

Vertical Slotting Machine
Vertical Slotting Machine
Product Code : 03
Brand Name : svpanchal
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description

These Slotter Machine are designed as per the industry standards as well as the requirements of our clients.

Technical data

Stroke length (size in mm. - Approximate)

Particulars

178 (7)”

203 (8)”

228 (9”)

305 (12”)

Stroke maximum

178

203

228

305

Stroke minimum

0

0

0

0

Maximum dia. Accommodated

584

610

750

915

When machining at centre

355

355

355

458

Distance between of table

305

355

355

508

Traverse of table longitudinal

254

254

355

331

Traverse of table tranverse

178

178

178

254

Height overall

1295

1372

1448

2032

Length of bed

762

851

952

1398

Width of bed

273

296

296

412

Height of bed

285

317

317

432

Height of head

735

850

850

950

Face of head

419*203

458*223

508*223

584*254

Number of speed

2

3

3

3

Number of ram cycle/ minute

56.80

52, 75, 96

48,69, 88

20, 34, 46

Electric motor requirements: 1

1440

960

960

1440

V belt required/ size

A-65 Nos/2

A-72 Nos/2

A-72 Nos/2

B-90/81 Each /2

Nett weight (approximate) kg.

430

550

650

1450



Trade Information
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque, Others
  • Supply Ability
  • 10-15 Machine Per Month
  • Delivery Time
  • 15-20 Days
  • Packaging Details
  • Standard Packing/ Wooden Packing.
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
